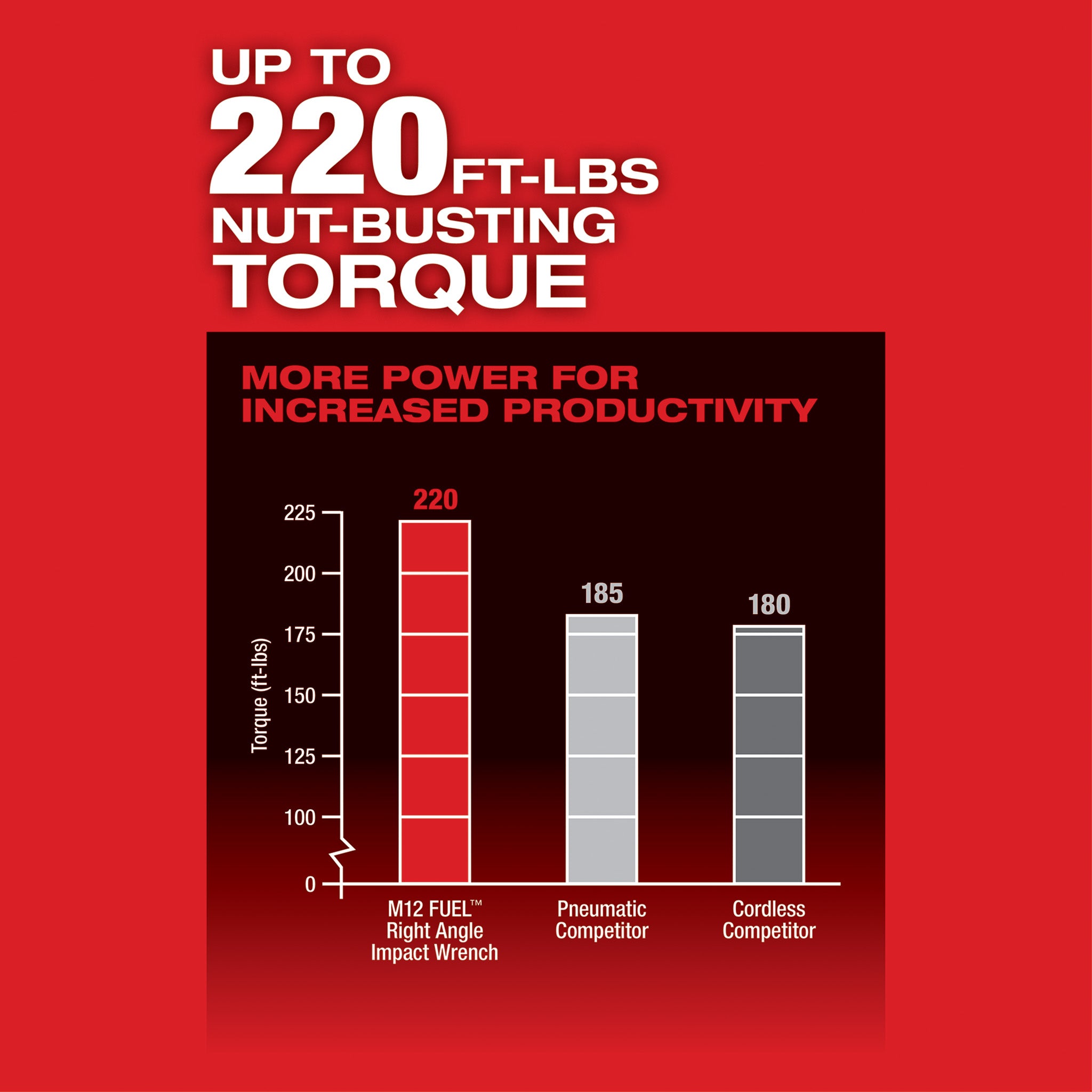

• Most Powerful in Class: Delivers up to 220 ft-lbs of nut-busting torque.
• 4-Mode DRIVE CONTROL™:
• Modes 1-3: Allow for precision adjustments of RPM and IPM.
• Mode 4 (Auto Shut-Off): Prevents over-tightening by applying no more than 15 ft-lbs of torque in forward.
• Mode 4 (Bolt Removal): Drastically slows RPMs once the bolt is loosened for better control.
• Compact Access: The 2.2" head profile allows for work in tighter spaces, reducing the need for socket extensions.
• POWERSTATE™ Brushless Motor: Provides maximum power and longer motor life.
• REDLINK PLUS™ Intelligence: Protects the tool from overloads, overheating, and over-discharge.
• LED Light: Integrated light illuminates the workspace.
• Premium Rubber Overmold: Resists corrosive materials and increases comfort during prolonged use.

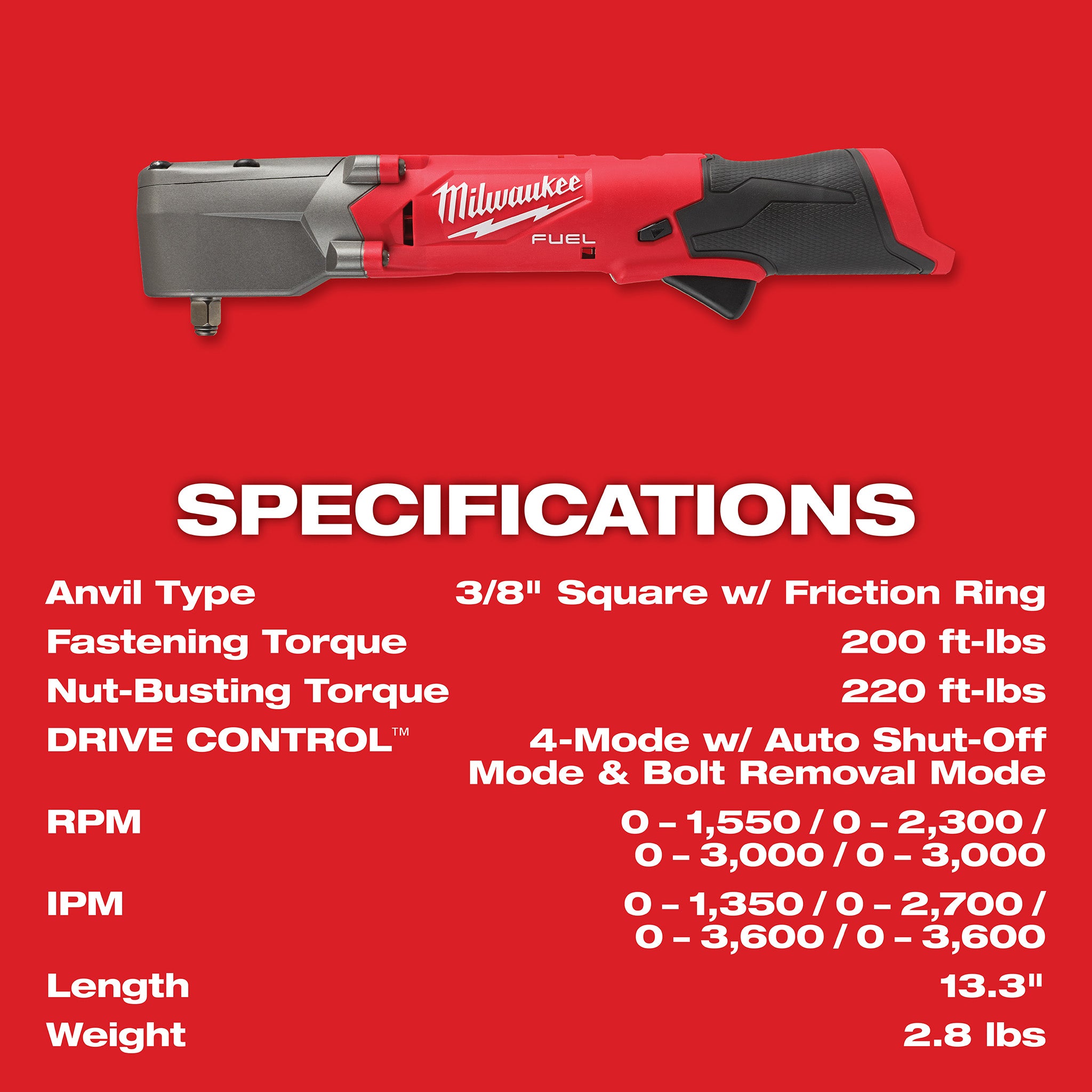

• Voltage: 12V
• Battery System: M12™
• Anvil Type: 3/8" Square w/ Friction Ring
• Nut-Busting Torque: 220 ft-lbs
• Fastening Torque: 200 ft-lbs
• RPM Range: 0 - 3,000
• IPM Range: 0 - 3,600
• Head Profile: 2.2 inches
• Length: 13.32 inches
• Weight: 2.82 lbs
• Tool Warranty: 5 Year Limited Warranty

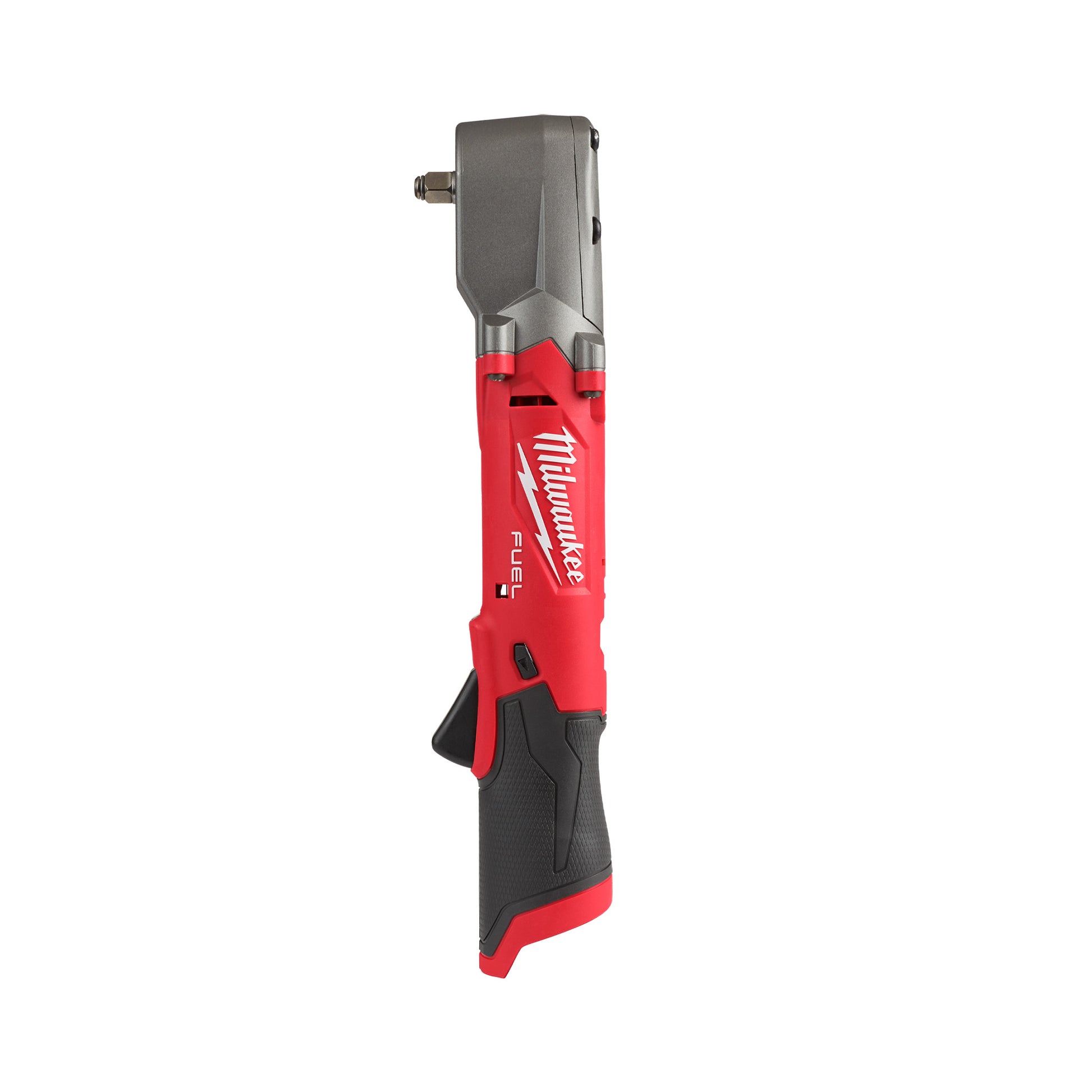

(1) M12 FUEL™ 3/8" Right Angle Impact Wrench w/ Friction Ring (2564-20)

Note: This is a "Bare Tool" (Tool Only) SKU. M12™ batteries and chargers are sold separately.

Will this right-angle impact wrench deliver enough power for automotive and mechanical fasteners?

Yes — the M12 FUEL 3/8″ Right Angle Impact Wrench delivers up to 220 ft-lbs of nut-busting torque, enabling removal and tightening of stubborn bolts and fasteners in many professional applications.

Is the friction ring and drive control useful for quick socket changes and precision work?

Yes — the friction ring anvil allows fast, tool-free socket changes, and the 4-Mode Drive Control offers RPM/IPM adjustments plus an auto shut-off to prevent over-tightening.

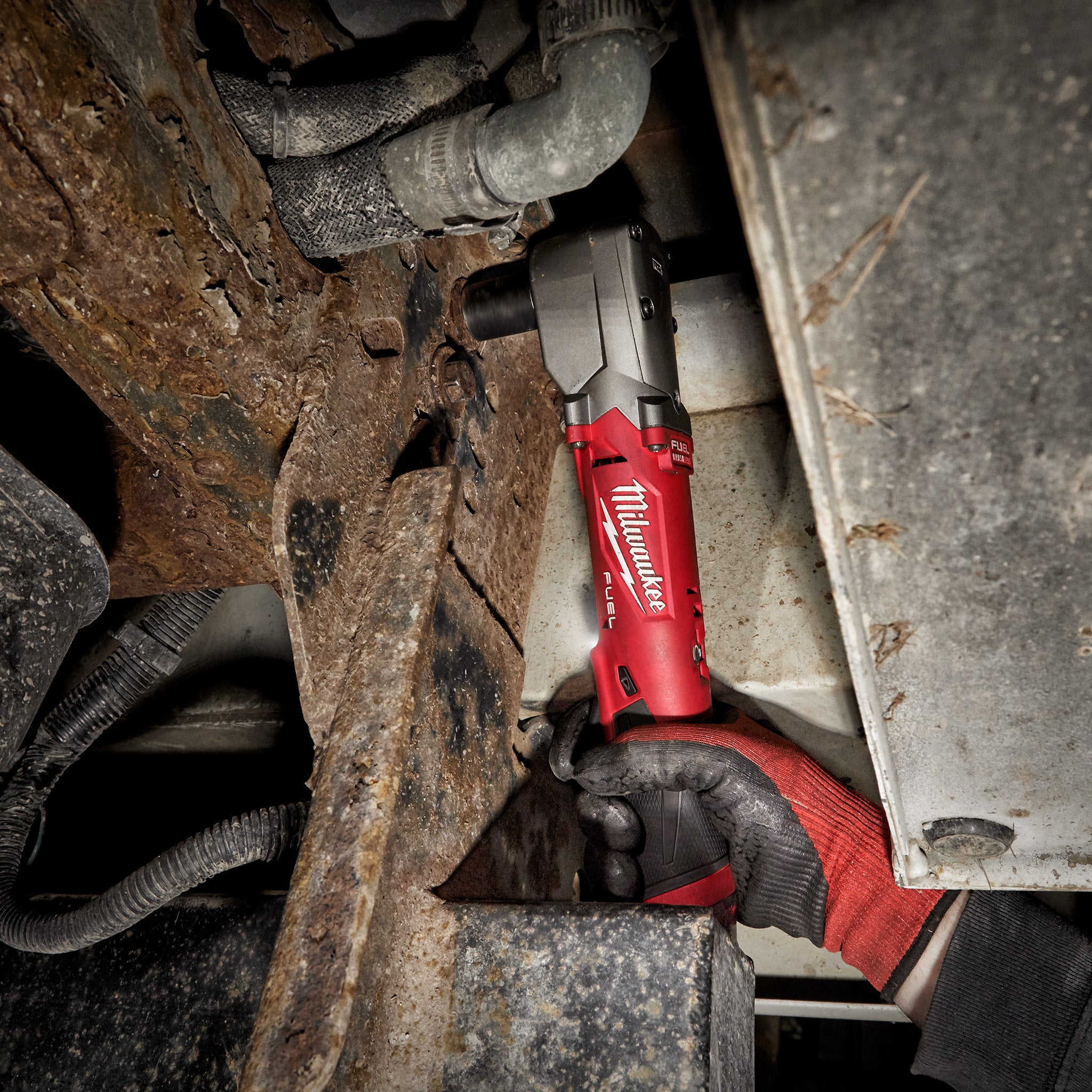

Is this tool compact enough to reach tight spaces effectively?

Yes — its 2.2″ head profile and long body design help it fit into tight or hard-to-reach locations where standard pistol-grip tools cannot.

Does this tool include features that improve jobsite control and comfort?

Yes — it includes REDLINK PLUS™ intelligence for overload protection, an LED work light, and a premium overmold grip for better control and comfort in tough conditions.
