• Most Cordless Access: Compact design allows for easier reach into tight corners and cabinets.
• Nitrogen Air Spring Mechanism: Consistently sinks 5/8" to 1-1/2" nails to the proper depth in hard and soft materials.
• Zero Ramp-Up Time: Fires instantly upon trigger pull, matching the speed of pneumatic tools.
• Tool-Free Depth Adjustment: Dial allows for quick and precise countersinking of nails.
• Tool-Free Jam Clearing: Easy-access latch on the nose for clearing infrequent jams without extra tools.
• Sequential & Contact Actuation: Includes both single-fire and "bump" fire modes for precision or speed.
• Dry Fire Lockout: Prevents the tool from firing when the magazine is empty to protect work surfaces.
• Reversible Belt Hook: Can be mounted on either side of the tool for convenience.
• Integrated LED Light: Illuminates the work surface for more accurate nail placement.
• Tip Storage: Onboard storage for an extra non-marring tip to prevent losing accessories.

• Voltage: 12V
• Battery System: M12™
• Nail Gauge: 18 Gauge
• Nail Length Range: 5/8" to 1-1/2"
• Magazine Capacity: 110 Nails
• Firing Modes: Sequential and Contact Actuation (Bump Fire)
• Nails per Charge: ~700 (using an M12™ CP2.0 battery)
• Length: 9.8 inches
• Height: 9.4 inches
• Width: 3.1 inches
• Bare Tool Weight: 4.2 lbs
• Weight (with CP2.0 battery): 4.6 lbs
• Tool Warranty: 5 Year Limited

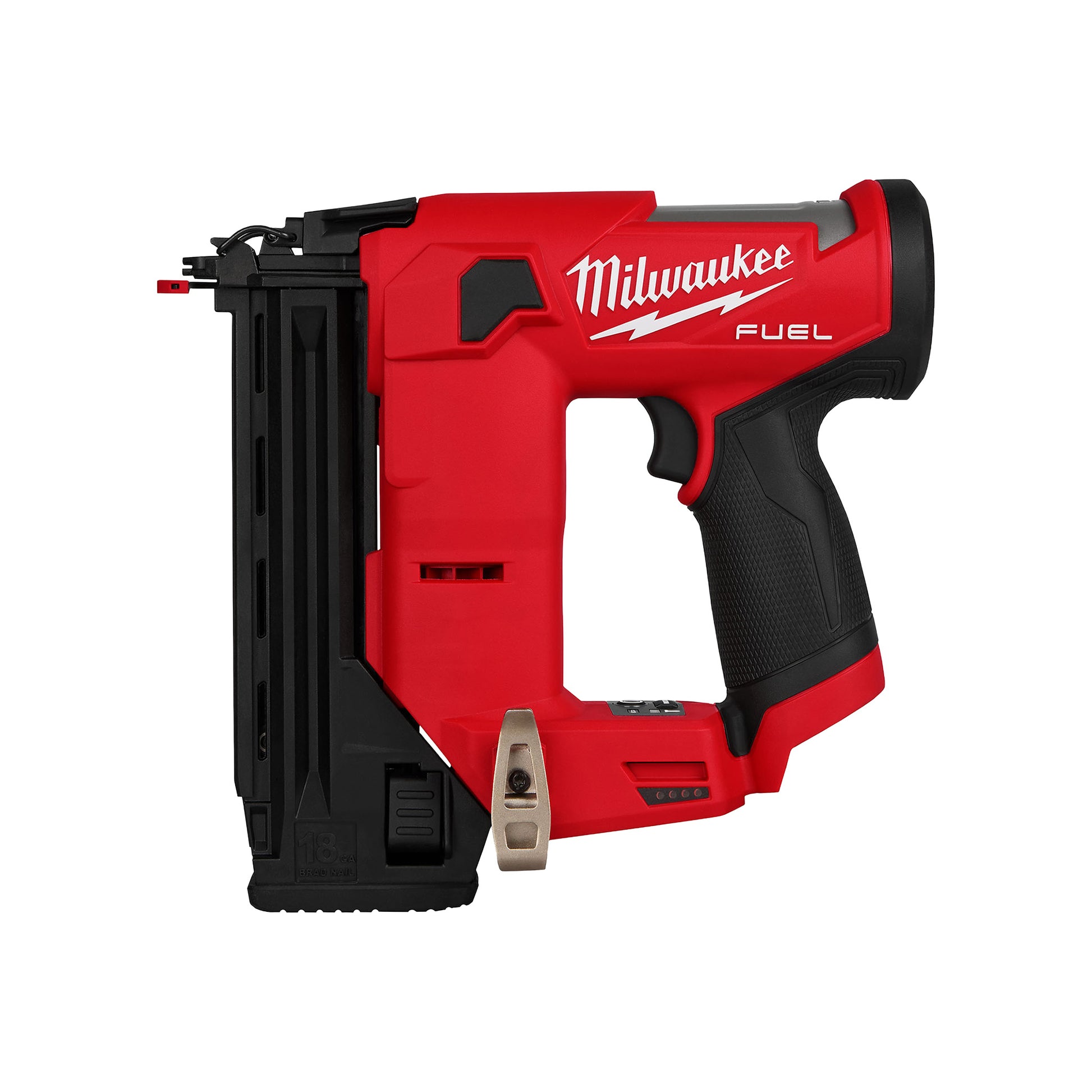

(1) M12 FUEL™ 18 Gauge Compact Brad Nailer (2541-20)

(1) Reversible Belt Hook

(2) Non-Marring Tips (one pre-installed, one spare)

Note: This is a "Tool Only" SKU. M12™ batteries and chargers are sold separately.

Will this nailer drive brad nails cleanly and consistently without an air compressor?

Yes — the M12 FUEL 18 GA Compact Brad Nailer uses a nitrogen air spring mechanism to sink 5/8″–1½″ brad nails to the proper depth in both hard and soft materials with consistent, clean nail holes.

Is this tool compact and easy to use in tight or overhead spaces?

Yes — its lightweight and compact design (about 4.6 lb with an M12 battery) gives better access in tight areas and reduces fatigue during extended use.

Does it work with all M12 batteries and provide good runtime?

Yes — it is compatible with all Milwaukee M12 REDLITHIUM batteries and can deliver over 700 nail fires on a single charge with an M12 CP2.0 battery.

Does this tool include features that reduce downtime and jamming?

Yes — it includes tool-free depth adjustment and a tool-free jam-clearing latch, helping speed up workflow and minimize interruptions.
